SPECIFICATIONS

Accuracy Class: ±1%

Battery Included: No

Brand Name: EARU

Certification: CE

Choice: yes

DIY Supplies: Electrical

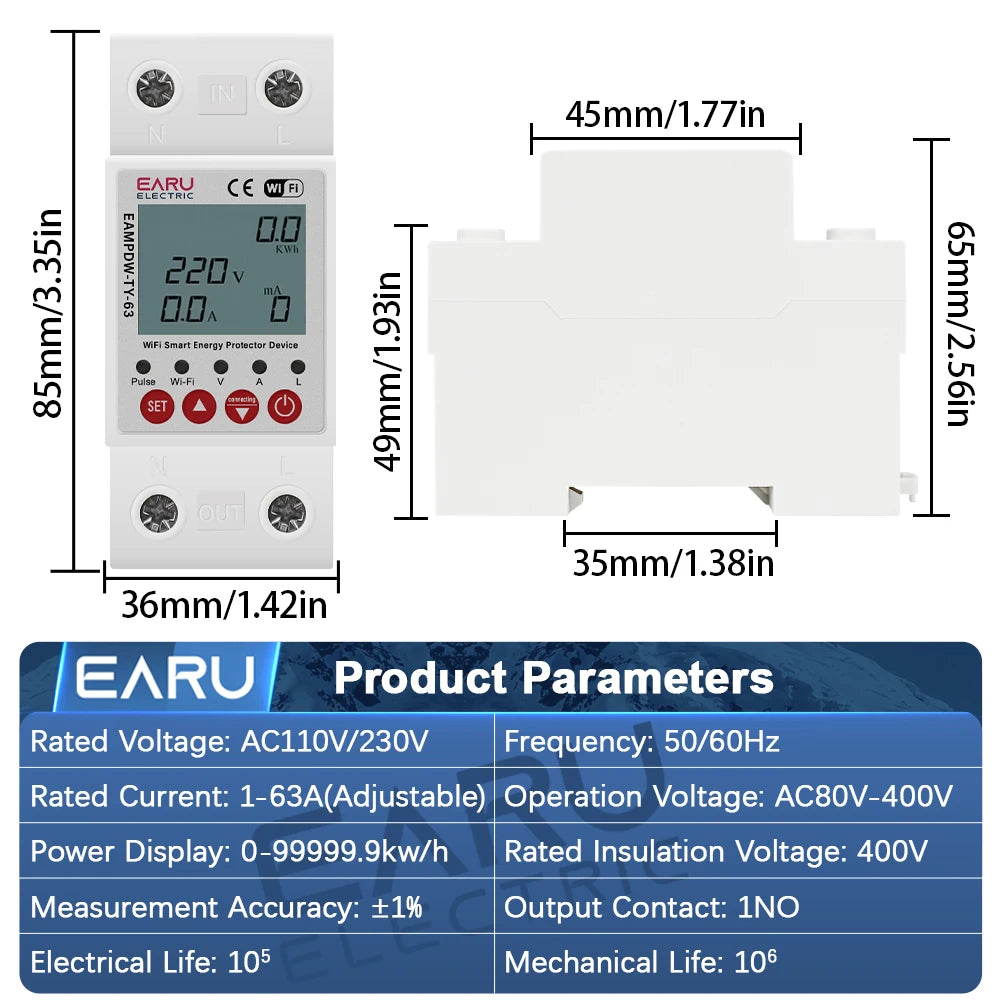

Dimensions: 85mm*36mm*65mm

Display Type: Digital Only

High-concerned chemical: None

Installation: 35MM Din Rail

Max Operating Current: 19A & Under

Measuring Energy Range: 0-99999.9kw/h

Model 1: RCCB

Model 2: RCBO

Model 3: RCD

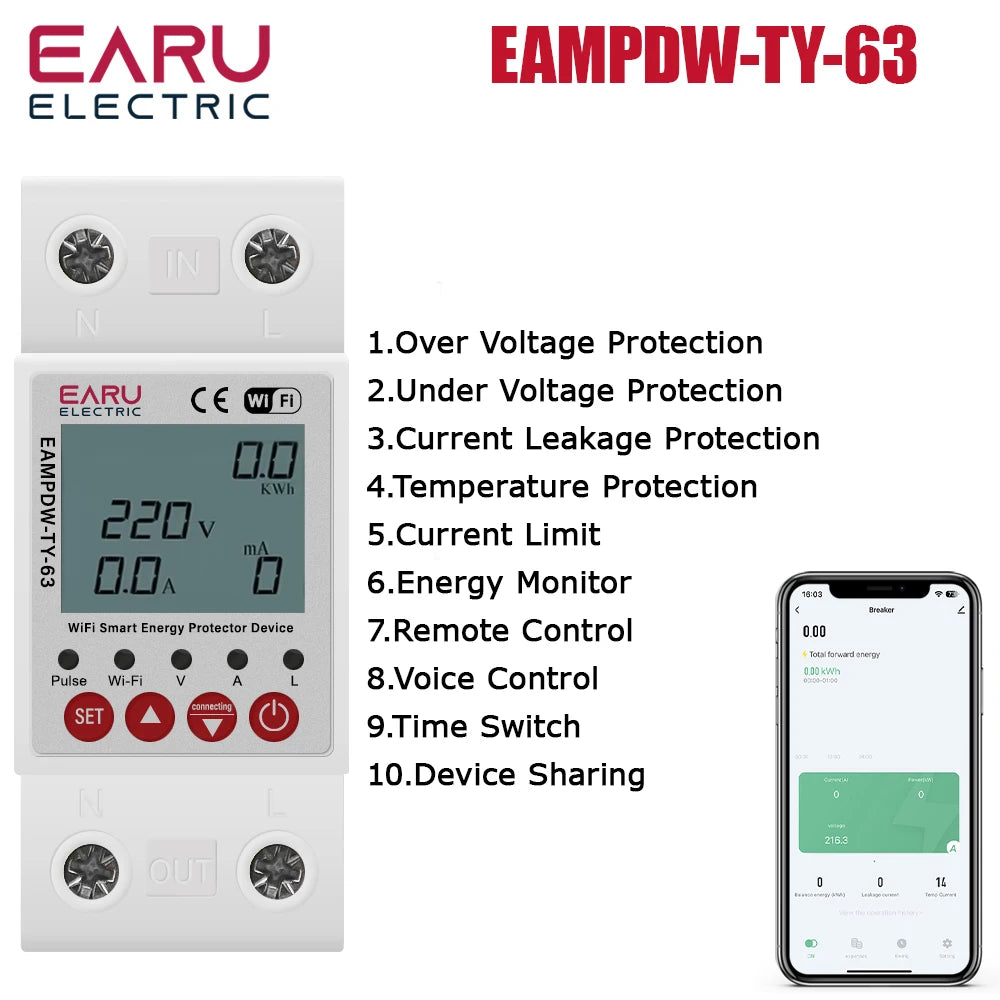

Model Number: EAMPDW-TY-63

Operating Temperature: -30℃-70℃

Origin: Mainland China

Output Contact: 1NO

Output Voltage: 220V

Phase: Single-phase

Power Source: AC

Power Supply: AC

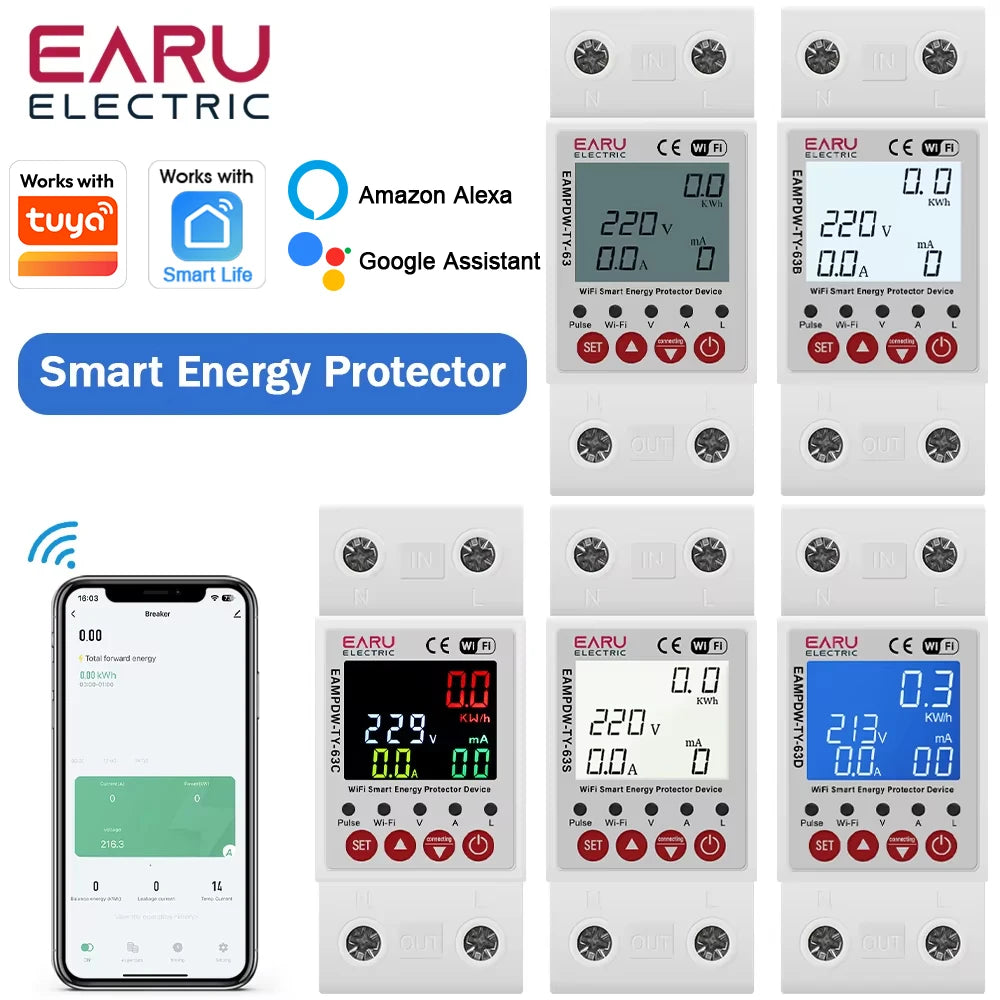

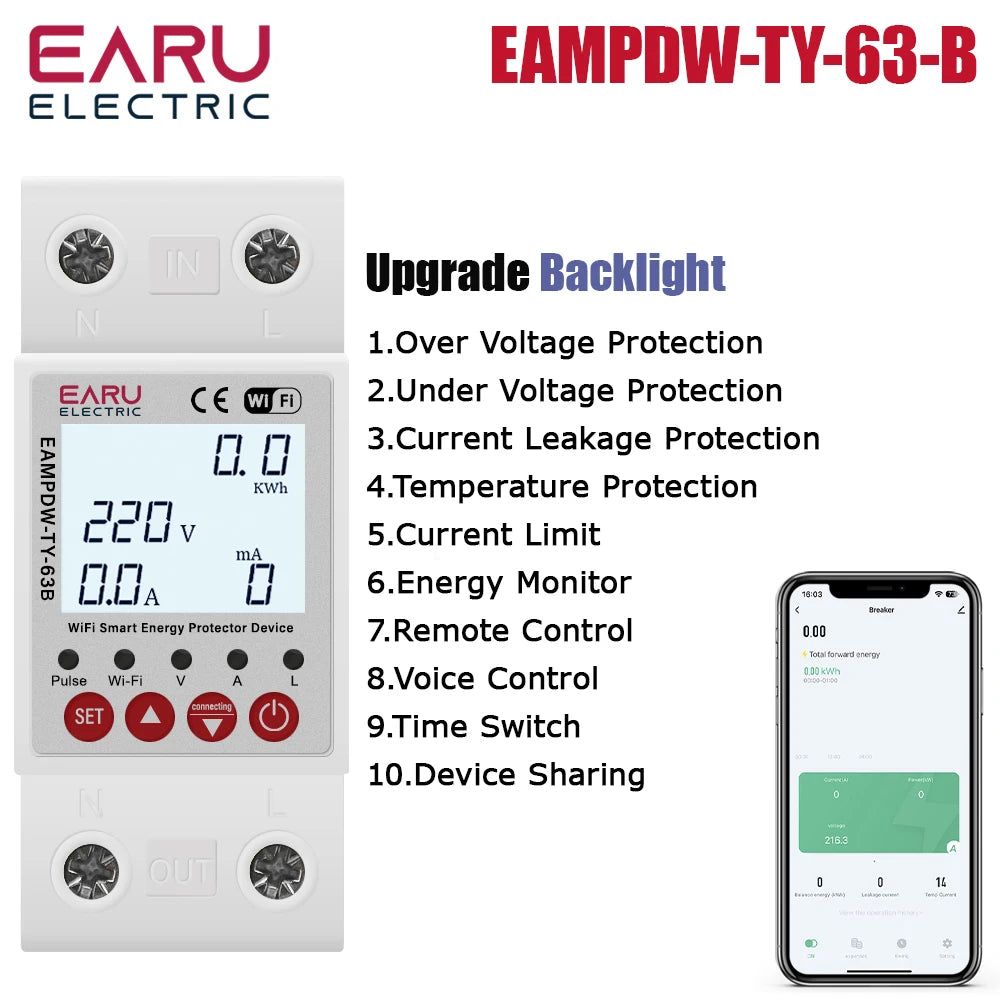

Product Name 1: EAMPDW-TY-63-B

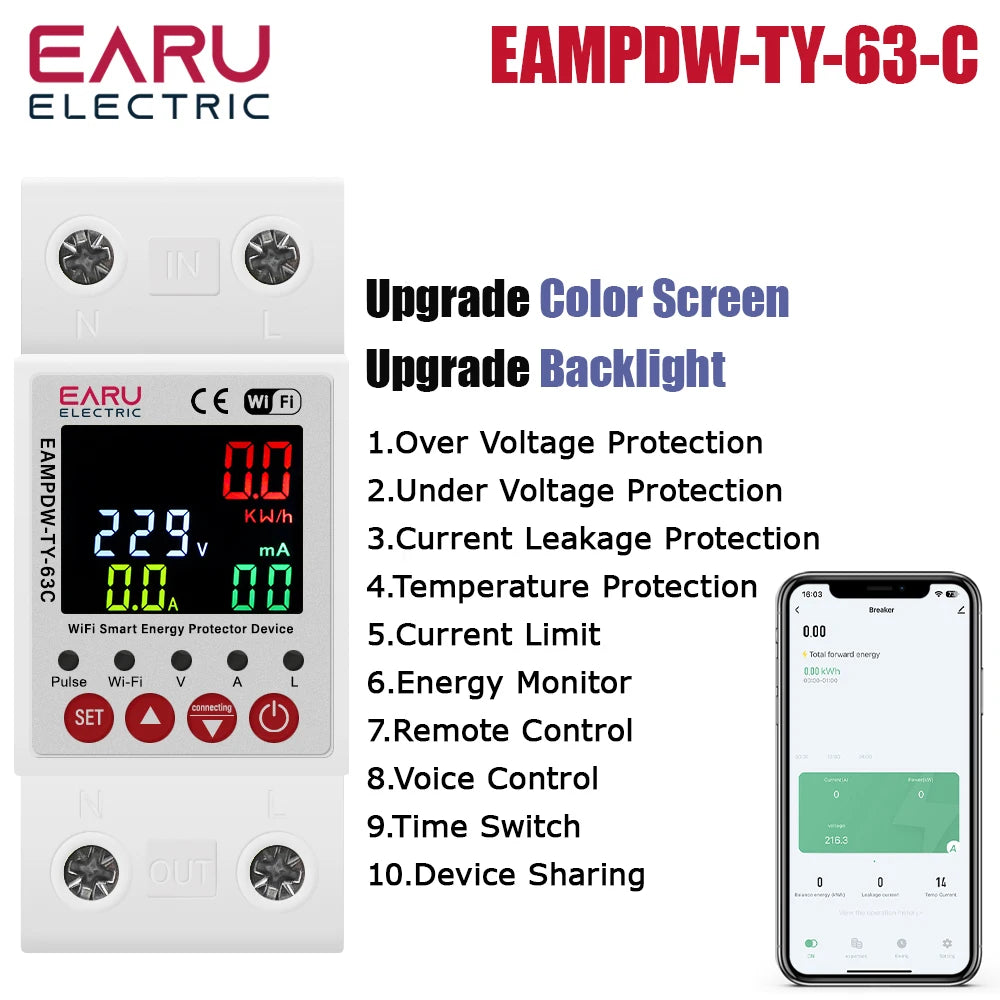

Product Name 2: EAMPDW-TY-63-C

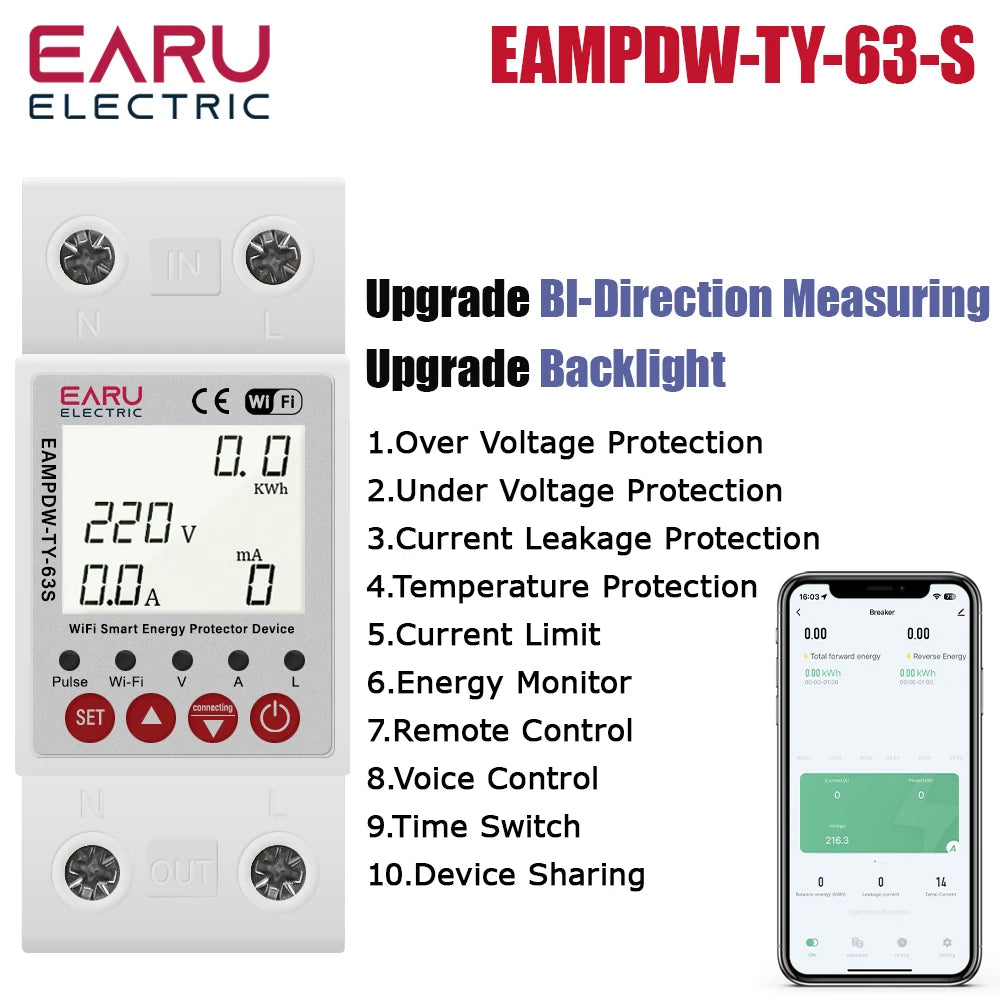

Product Name 3: EAMPDW-TY-63-S

Product Name 4: EAMPDW-TY-63-D

Protection Degree: IP20

Rated Current: 1-63A(Adjustable)

Rated Frequency: 50/60Hz

Rated Voltage: 230V,AC110V/AC230V

semi_Choice: yes

We are factory, we can provide OEM service, if you need product with your logo, please contact us!

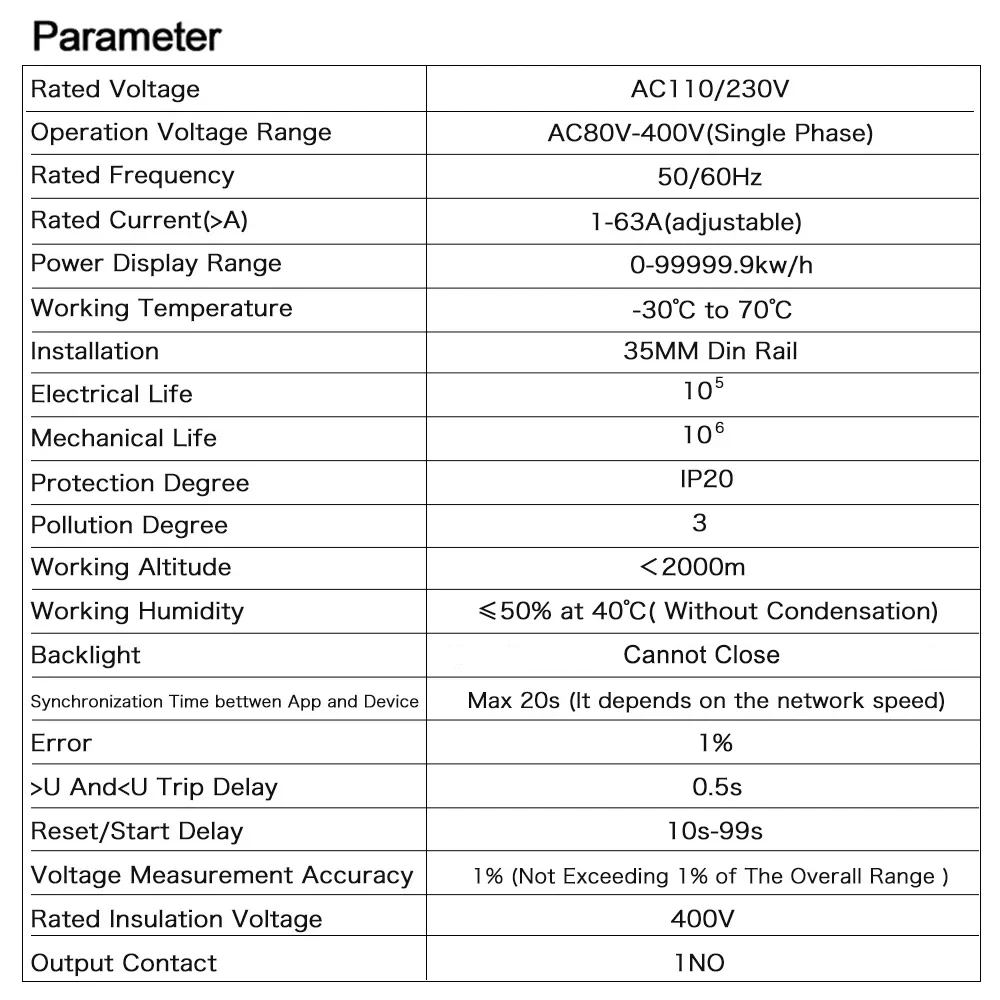

Product Specification

Rated Voltage: AC110V/230V; Frequency: 50Hz/60Hz

Function:

1. Voltage Meter

2. Ammeter

3. Energy Meter

4. Timer Switch

5. Remote Control ON/OFF

6. Power Failure Memory

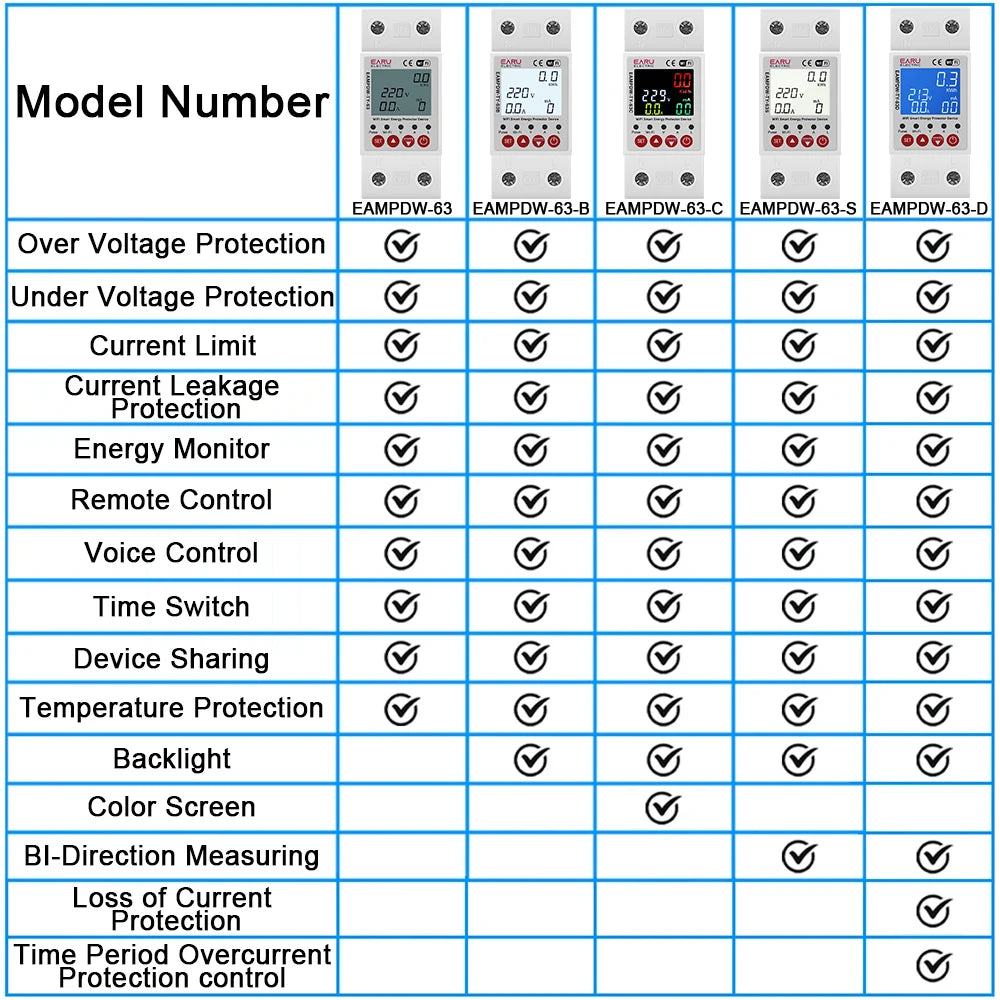

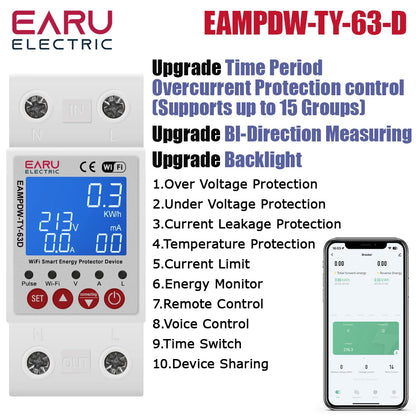

7. Bidirectional Detection (EAMPDW-TY-63S/EAMPDW-TY-63D Only)

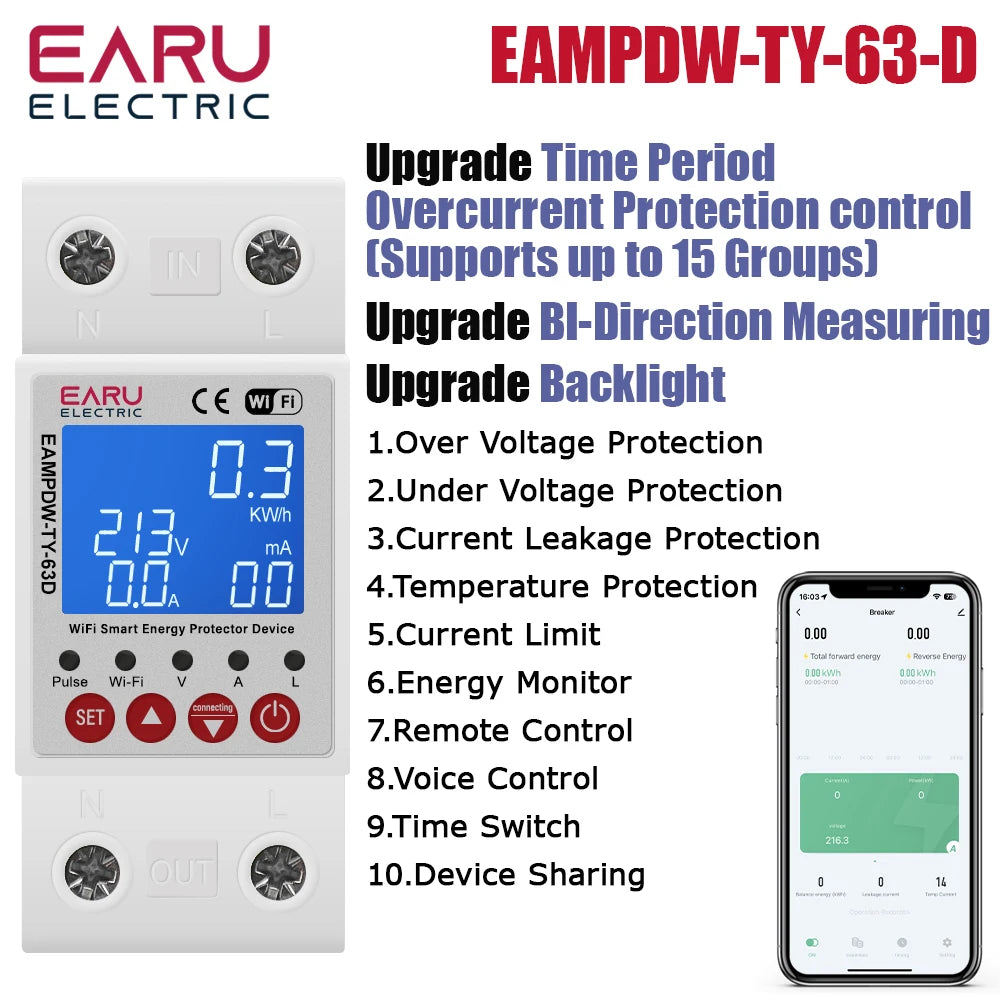

8. Time Period Overcurrent Protection Control (1A-100A Aadjustable) (EAMPDW-TY-63D Only)

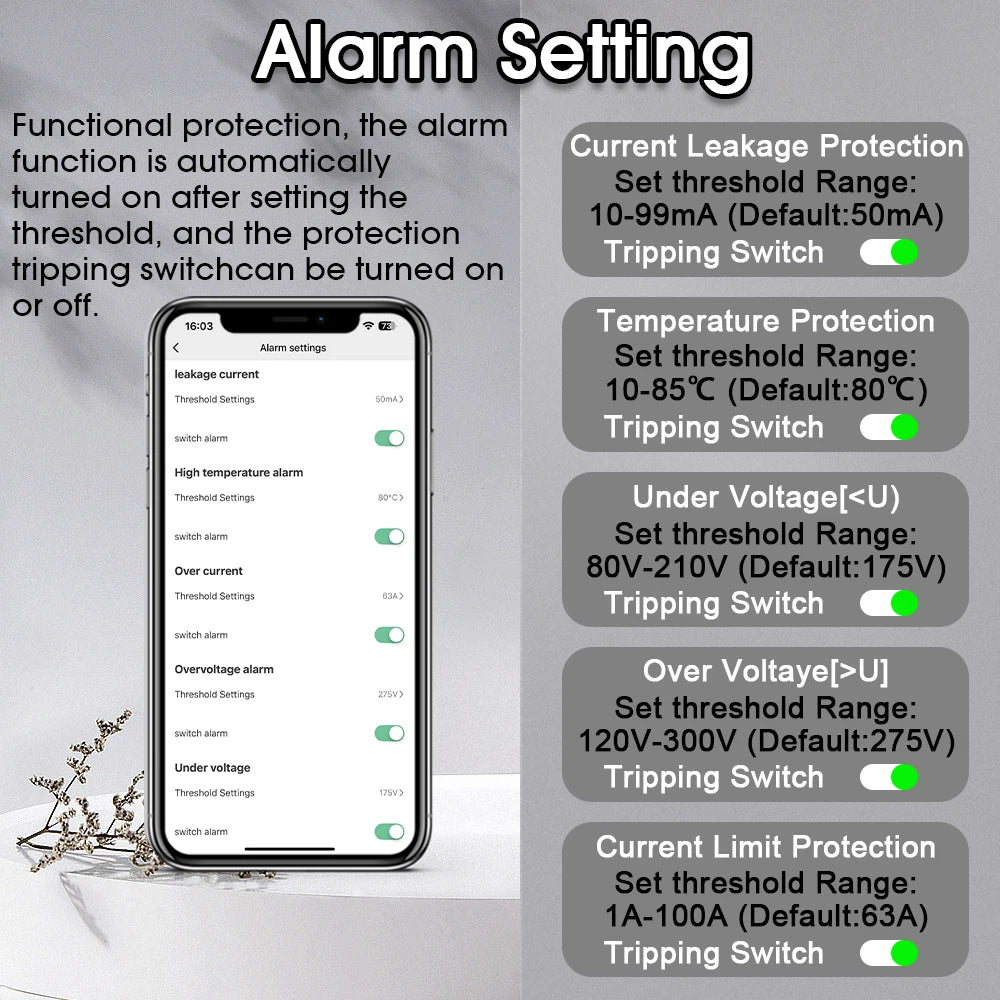

9. Over Current Protection (1A-63A Adjustable)

10. Under-Voltage Protection (76V-240V Adjustable)

11. Over-Voltage Proteciton (120V-300V Adjustable)

12. Current Leakage Protection (10mA-99mA Adjustable)

13. Temperature Protection (10°C-85°C Adjustable)

14. Over Current and Leakage Reconnect Times (1-30 Adjustable)

15. Reconnect Time (Delay on time) (10s-90s Adjustable)
