SPECIFICATIONS

Brand Name: YiHESZ

Doorknob Funcition: Biometric,Key & Keypad

Handle Direction: Direction Reversible

High-concerned chemical: None

Installation Method: Drilling installation

Material: Aluminium alloy

Origin: Mainland China

Power Source: DRY BATTERY

Power Supply: DRY BATTERY

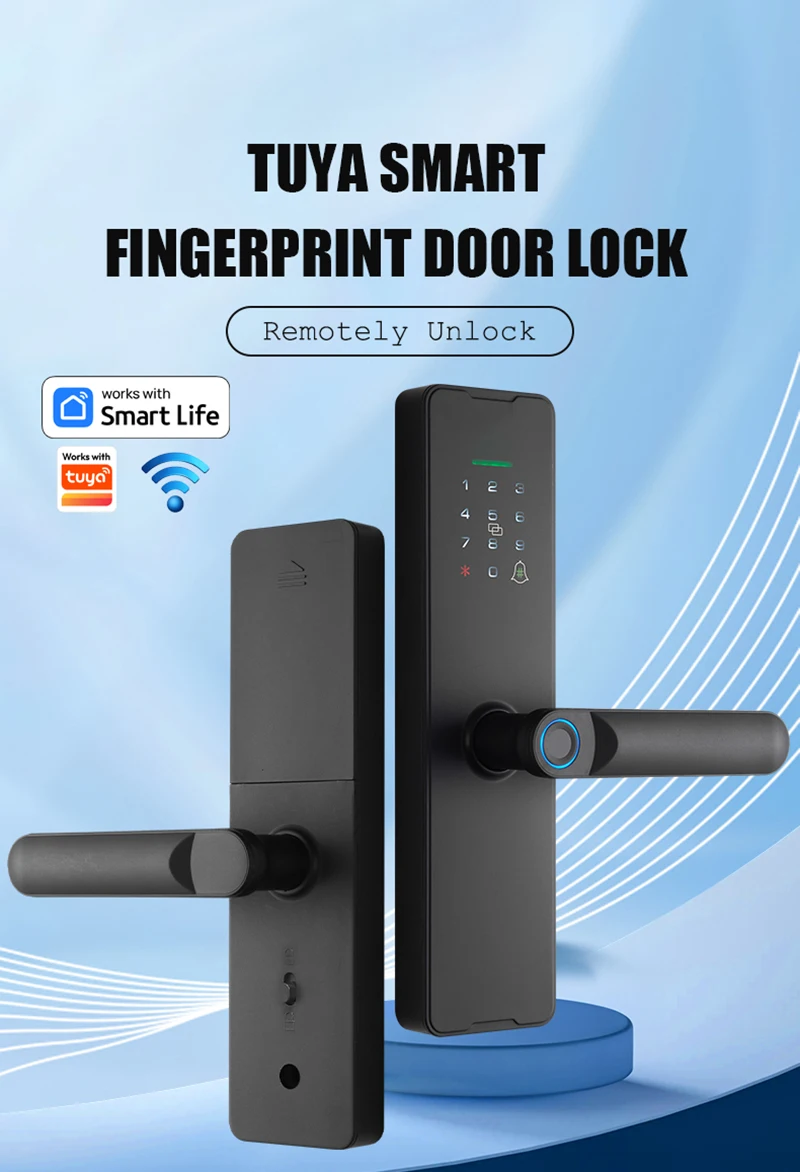

Smart home platform: Tuya

Suitable Door Type: Wooden Door

Suitable for Mortise: 5050

Ways To Unlock: App,Mechanical Keys,WiFi,Password,FINGERPRINT

YIHESZ Model: X8

5 in 1 Unlocked Ways:

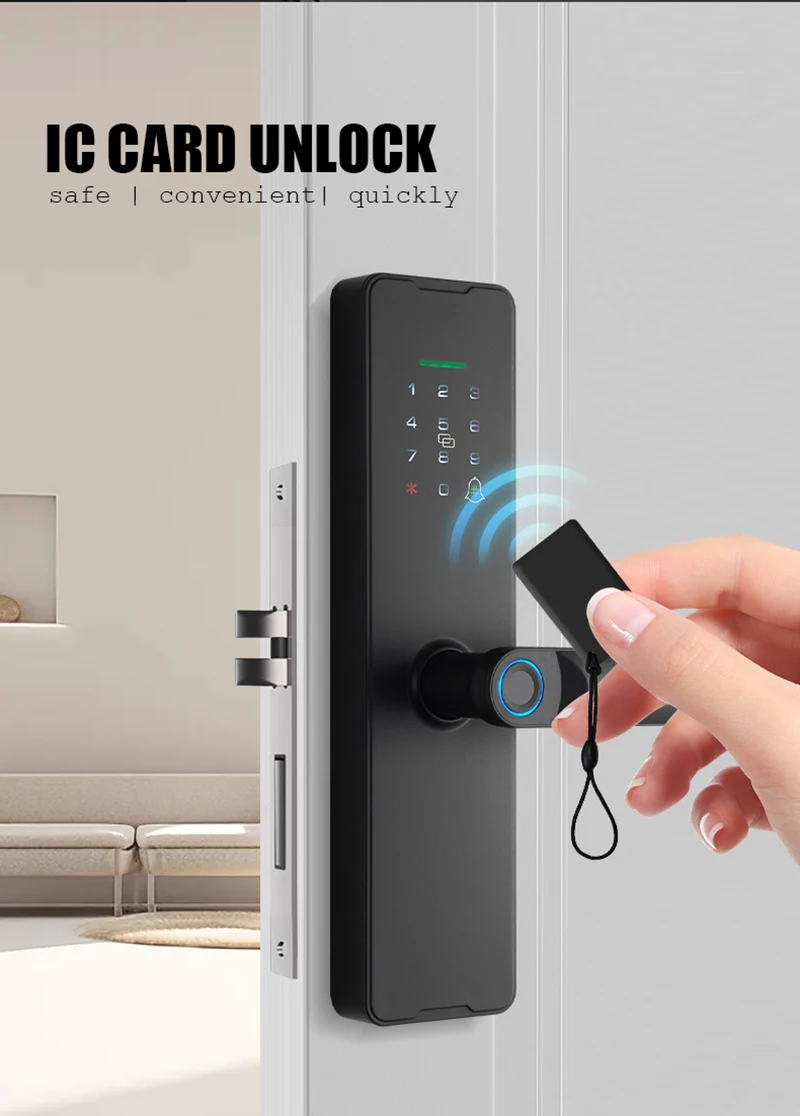

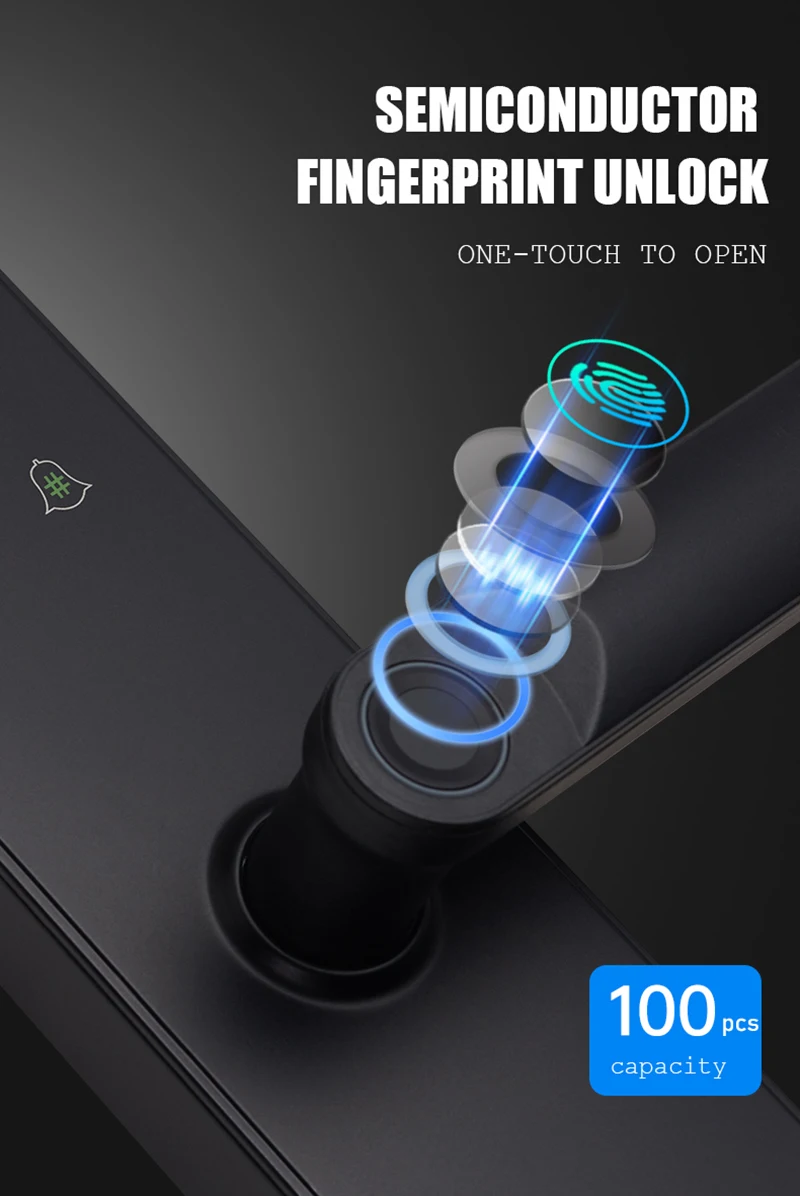

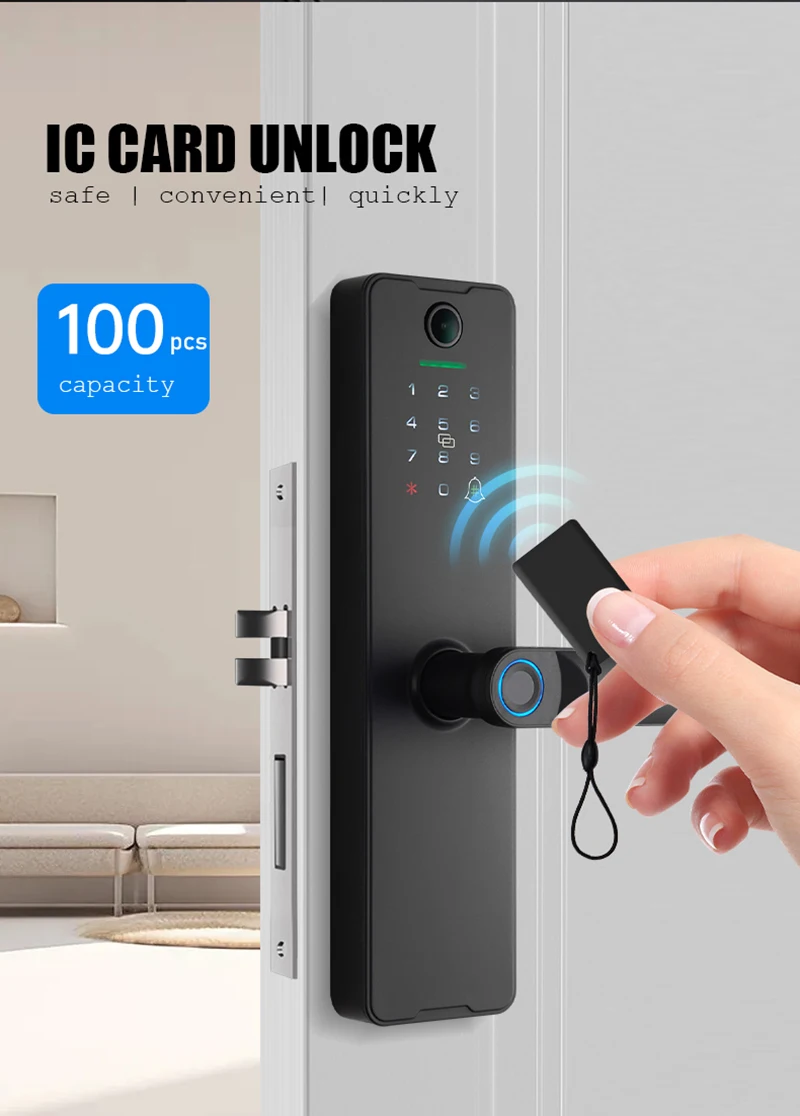

Opened by fingerprint, password, card, key and remotely open by app

Energy-saving Design:

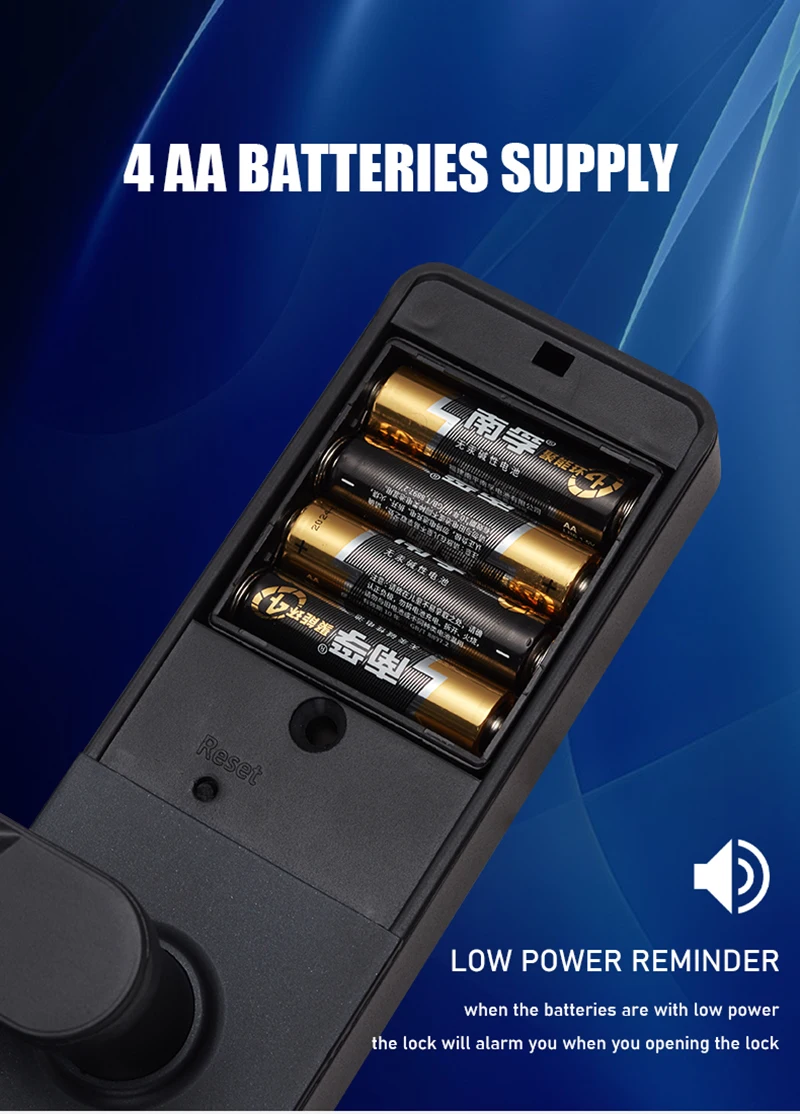

No more worry about pollution or wasting money. With 4*AA batteries , it can be used for half of a year .

Versatile Lock:

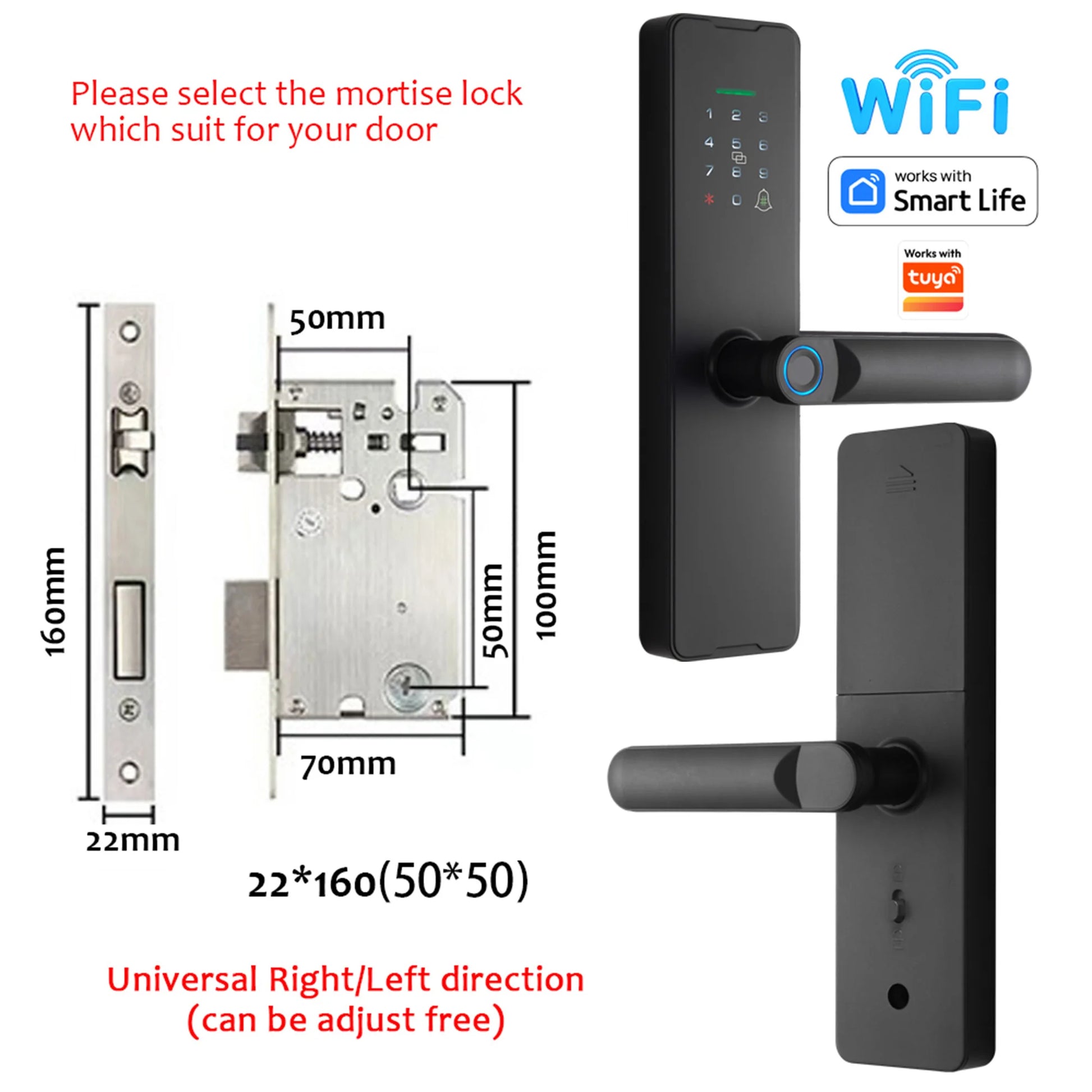

Meeting the standards of most lever lock, equipped with a bag of screws. There are 2 kinds of mortise lock for you to select.you can fix it on your door which the thickness of the door is 35-60mm.

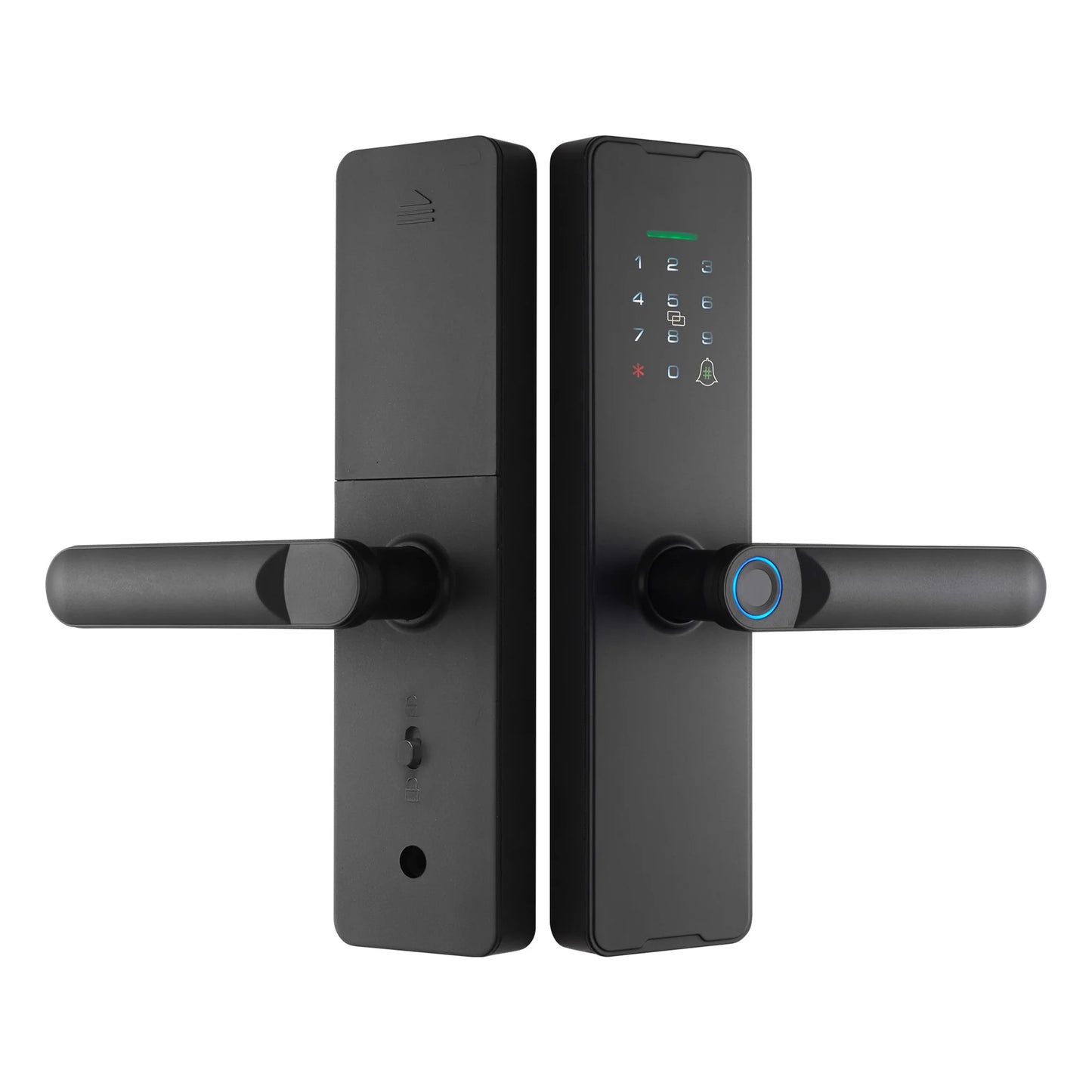

Model:WF-X8

Color:Black

Material:Carbon Steel

Administrator:10 groups

Supply:4*AA Batteries(not included)

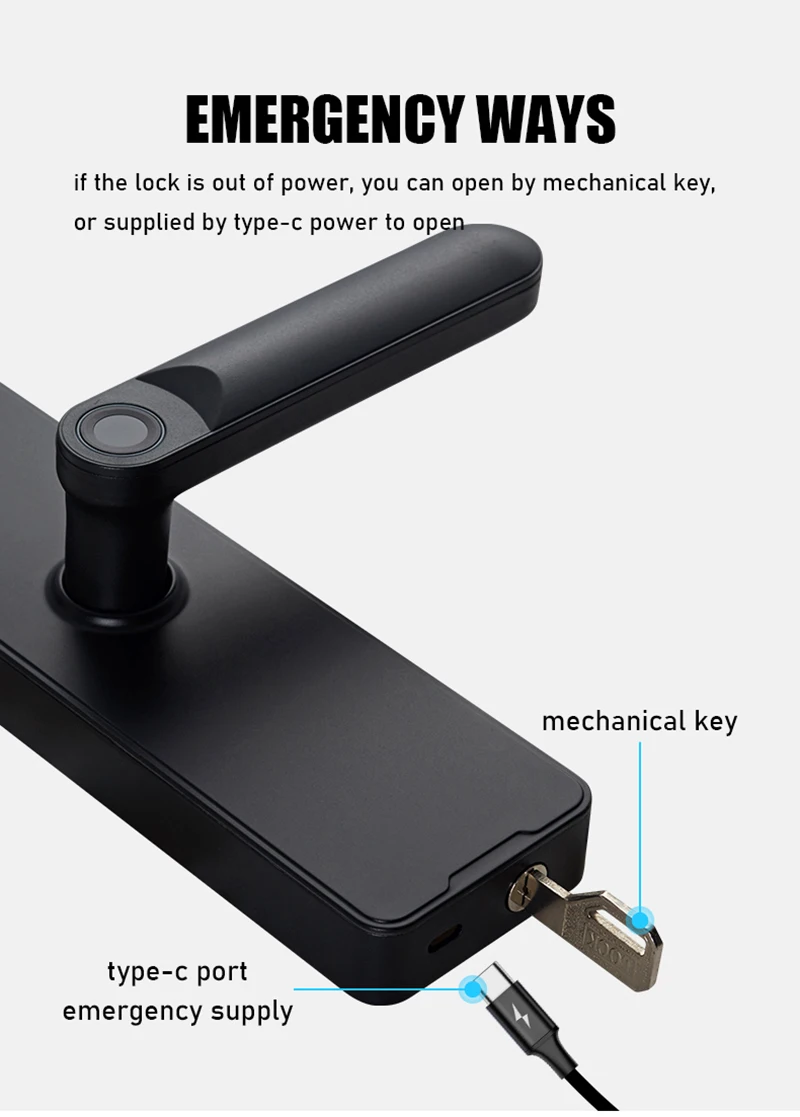

Emergency Supply Type-C

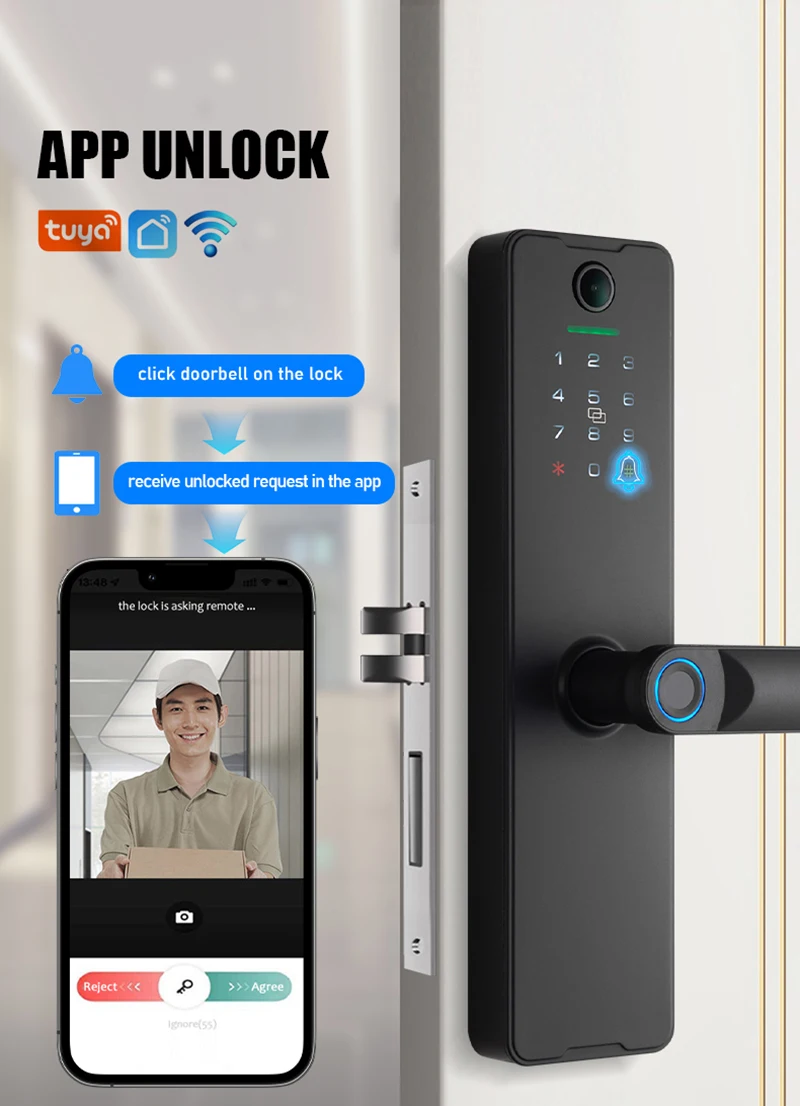

Unlocked Ways:APP, Fingerprint, Card, Password, Key

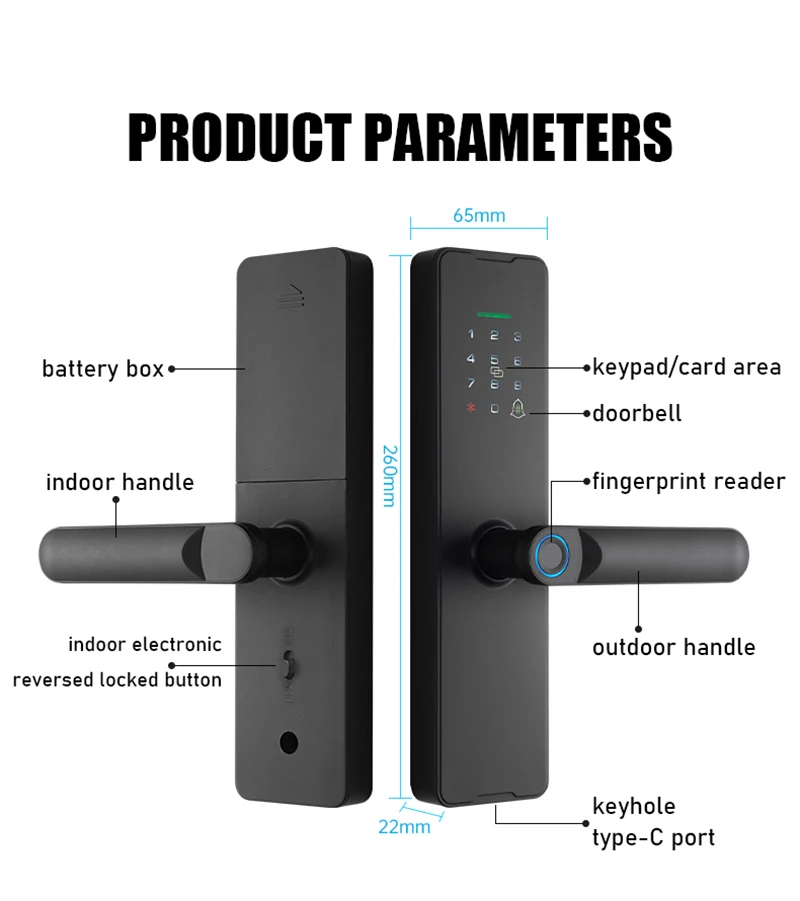

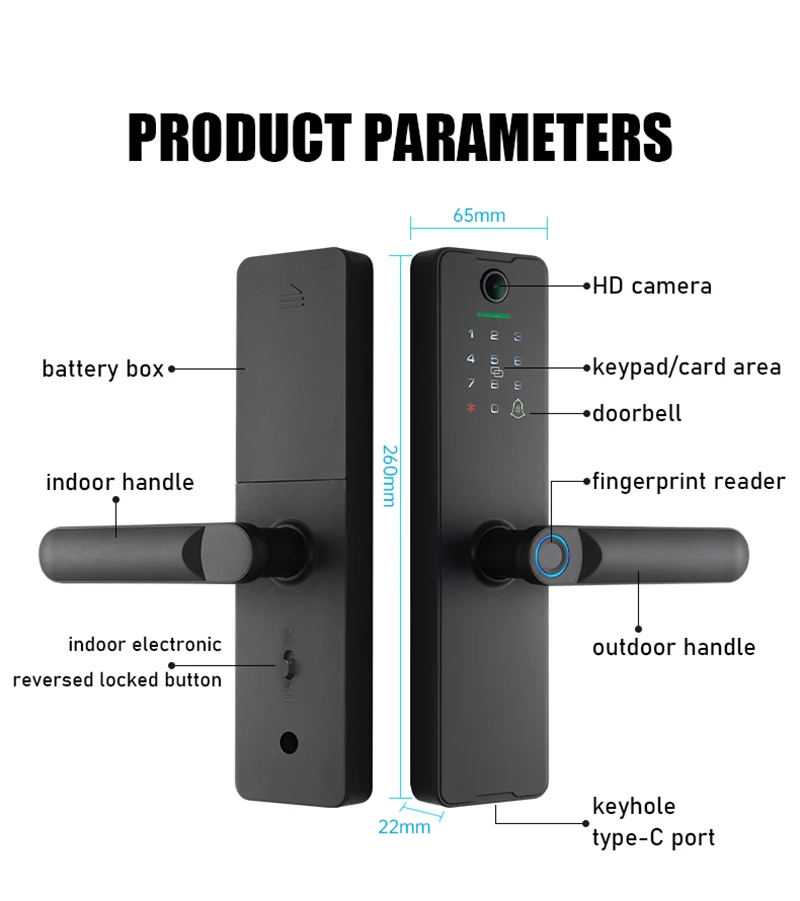

Size:260*65mm

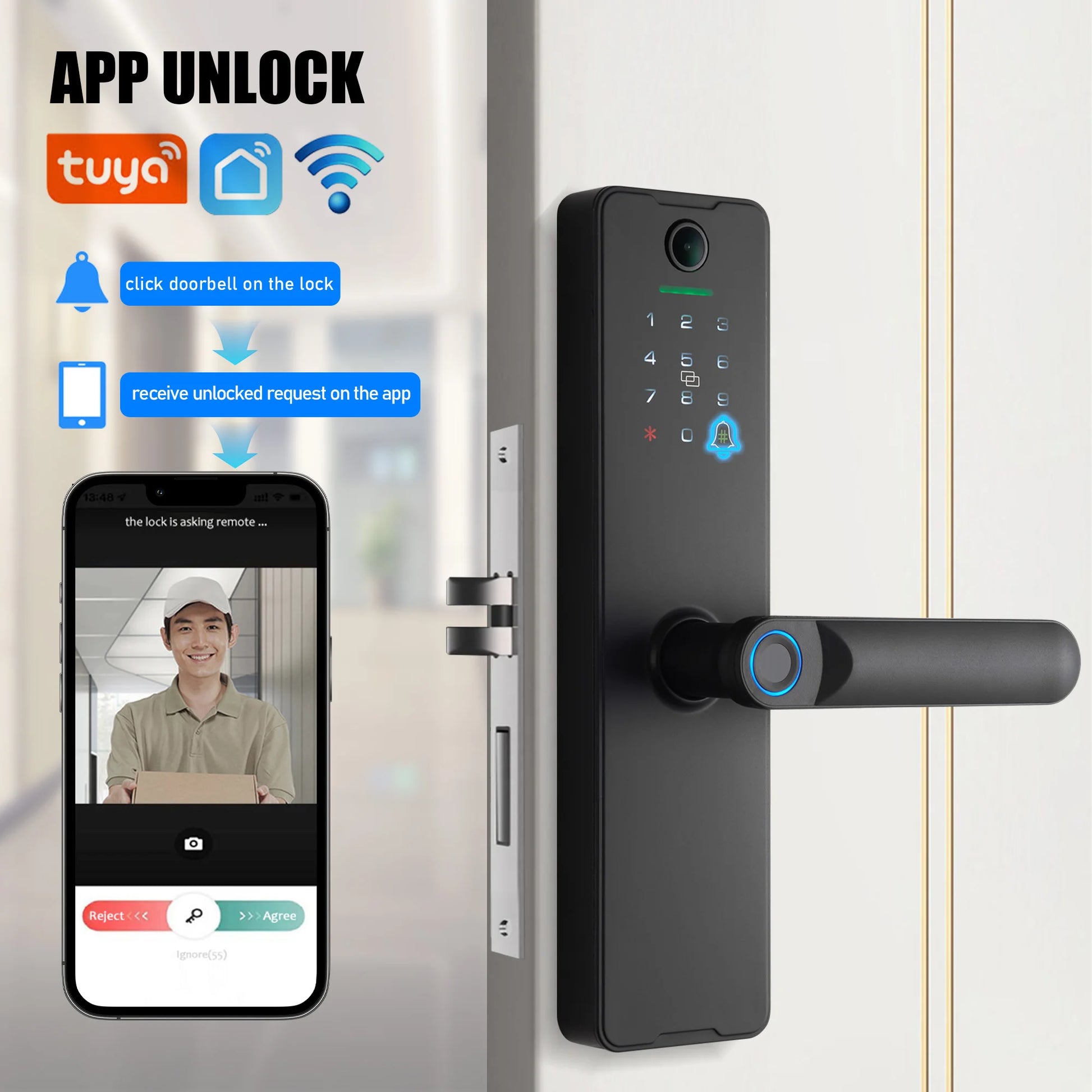

App:Tuya smart app/smart life app

Network:2.4G wifi

Low Power Reminder Voltage:4.8V±0.2V

Emergency Supply Power:DC 5V

Static Current:<80uA

Working Current:<250mA

Working Humidity:20%-90%RH

Working Temperature:-25℃—+70℃

Package Including:

1X Front Panel

1X Rear Panel

1X 5050 Mortise Lock(22*160)

2X Keys

2X IC Cards

1X Manual

1X Bag of Screws
